Passenger Lifts - Commercial Get A Quote

Octagon can supply Commercial Passenger Lifts in standard sizes from 630 to 5000 kg.

Features and Advantages:

  • High quality range of factory interior finishes available
  • European design and manufacture
  • Ease of installation and maintenance
  • Safety is integral to the design, for lift operation and maintenance
  • Designed and built to provide a long service life
  • Suitable for high demand service such as hospitals, medical facilities and commercial buildings.

Technical Features:

  • High quality motor, inverter and controllers
  • The flexibility to build the shaft in brick, concrete or steel
  • High quality safety devices to protect the user and service technician
  • Standard and custom size lifts are available
  • Supplied to the latest European and Australian Standards


STANDARD Commercial Lift sizes:

Maximum Load kg 1000 1600 2500
Passengers 13 21 33
Shaft width mm 2000 2100 2500
Shaft depth mm 2000 2800 3100
Door opening width mm 900 1200 1400
Car width x depth mm 1400 x 1600 1400 x 2400 1800 x 2700
Minimum pit depth mm 1100 1200 1300
Minimum Headroom mm 4200 4200 4200
Note: Technical details above are provided as an example only and are not for final specification or construction.



Cibes Lift Creator:

  1. Click on pencil
  2. Select Lift Type in bottom left corner
  3. Try out different styles and colours
  4. Download details on right side

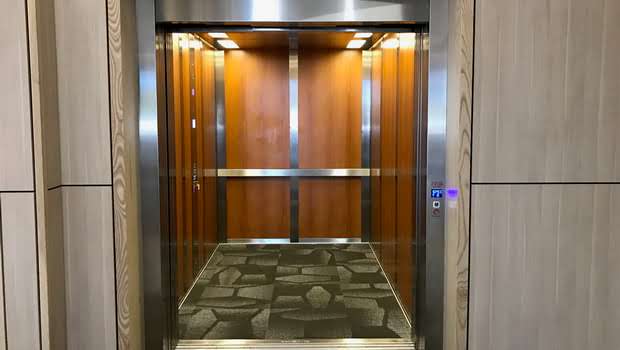

Commercial Lifts

Talk to us early in the planning stages as there are a number of decisions to be made early in the design phase that can save you significant costs later on.
You need to consider the following:

  • What size lift is required and what is the optimum shaft size?
  • Are spare parts supported for the anticipated life of the lift?
  • Is the control system, motor and inverter open source equipment or is it protected by OEM software protection?

At Octagon, we can answer all the above questions.

enquire Now

Passenger elevator

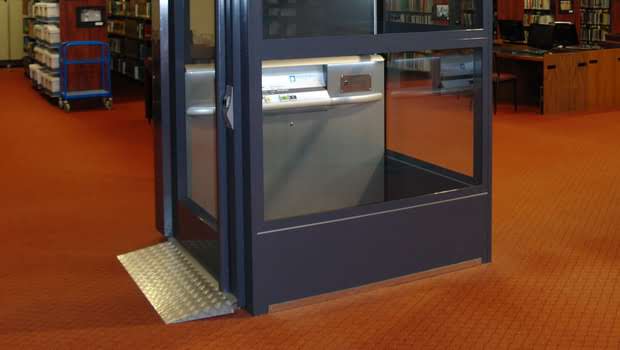

Do you want to install a lift in an existing building?

Where no lift shaft exists, a Platform Lift offers a cost effective and high quality solution to establish access between levels in an existing building. This can either be achieved inside the existing building structure or externally.

For more information Platform Lifts, call Adrian on 6363 5953
or ENquire Now

lift design

Cabin styles and designs

Cabin design styles start with simple, yet clean and stylish designs. Materials and designs can be selected from the range of factory standards finishes or a custom design with specific interior finishes can be provided

  • Classic Athena A310

    Classic Athena A310

    Style A310-4 with laminate walls HD2228 PL and type O10 ceiling.

  • Classic Athena A510

    Classic Athena A510

    Style A510-1 with polish oak veneer walls and type O14 ceiling with gold mirror finish.

  • Classic Athena A510

    Classic Athena A510

    Style A510-3 with Wood veneer VC-1181 and type O10 ceiling with stainless mirror finish.

  • Modern Life L530

    Modern Life L530

    Style L530-2 with combination satin & mirror stainless walls and type O14 ceiling.

  • Modern Life L510

    Modern Life L510

    Style L510-1 with blue glass walls and type O13 mirror stainless steel ceiling.

  • Modern Life L510

    Modern Life L510

    Style L510-3 with white glass walls and type O15 mirror stainless steel ceiling.

  • Modern Life L310

    Modern Life L310

    Style L310-3 with BA Linen patterned stainless steel walls and type O55 ceiling.

  • Future Trend T110

    Future Trend T110

    Style T110-3 with Melamine 402 walls and special T110 ceiling.

  • Future Trend T310

    Future Trend T310

    Style T310-3 with curved painted steel walls and type special T310 ceiling.

  • Future Trend T510

    Future Trend T510

    Style T510-3 with painted steel walls in RAL 1028 with type T510 special ceiling.
